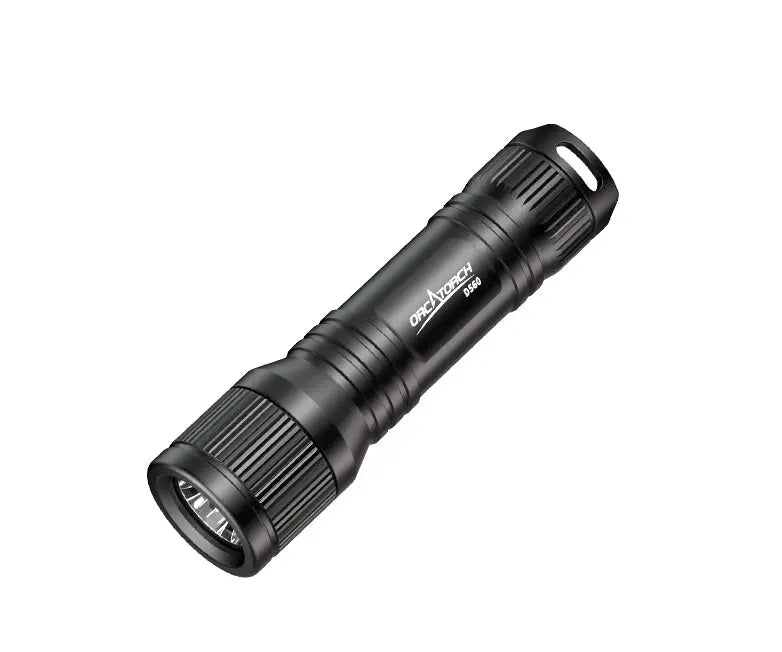

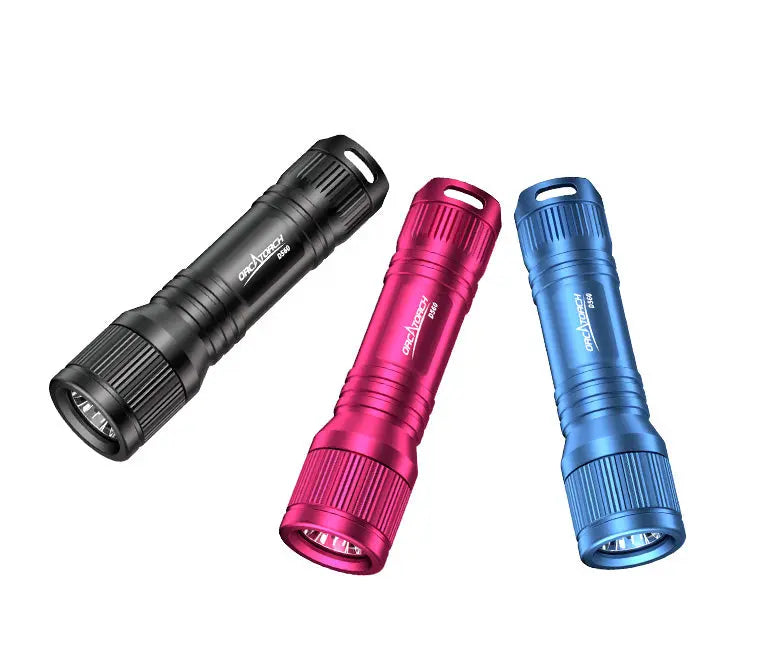

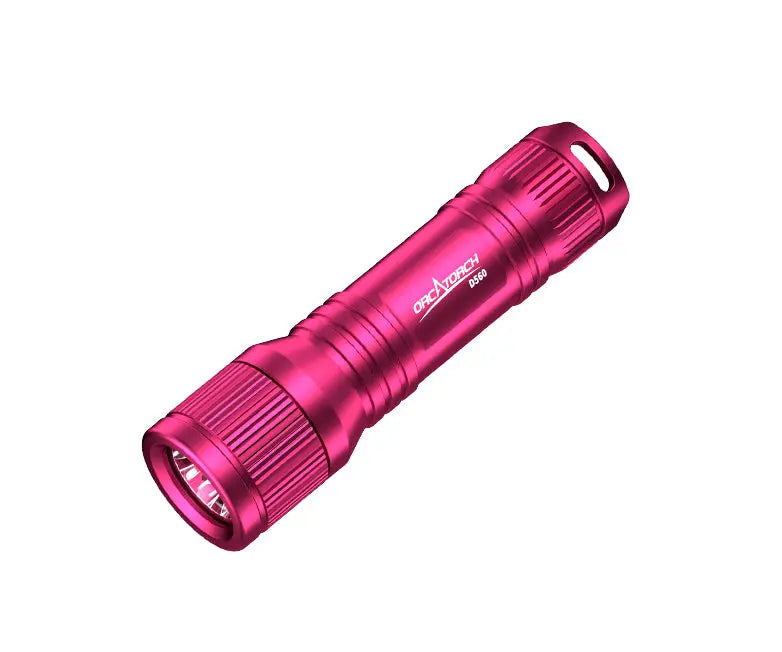

OrcaTorch D560 Mini Dive Light
Compact Size. Powerful Performance. Built for Every Dive.

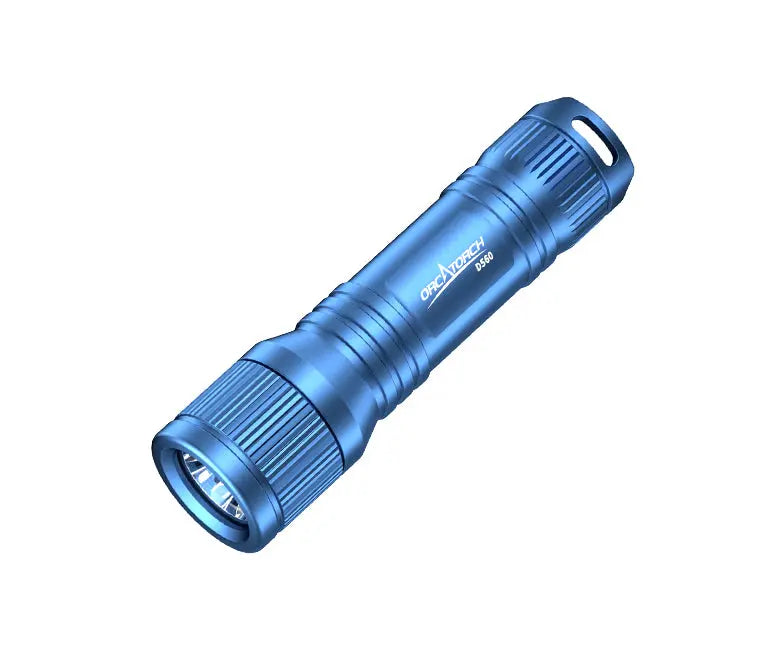

The OrcaTorch D560 is an ultra-compact dive torch that delivers impressive performance in a body measuring just 90mm long. Designed as a reliable primary light for recreational diving or a convenient backup torch for technical divers, the D560 produces up to 700 lumens when powered by the included 14500 USB-C rechargeable lithium-ion battery.
Despite its compact size, the D560 offers a focused 15° beam, exceptional underwater reliability and a depth rating of 150 metres. It also supports standard AA batteries, making it an excellent travel companion when recharging isn't available.

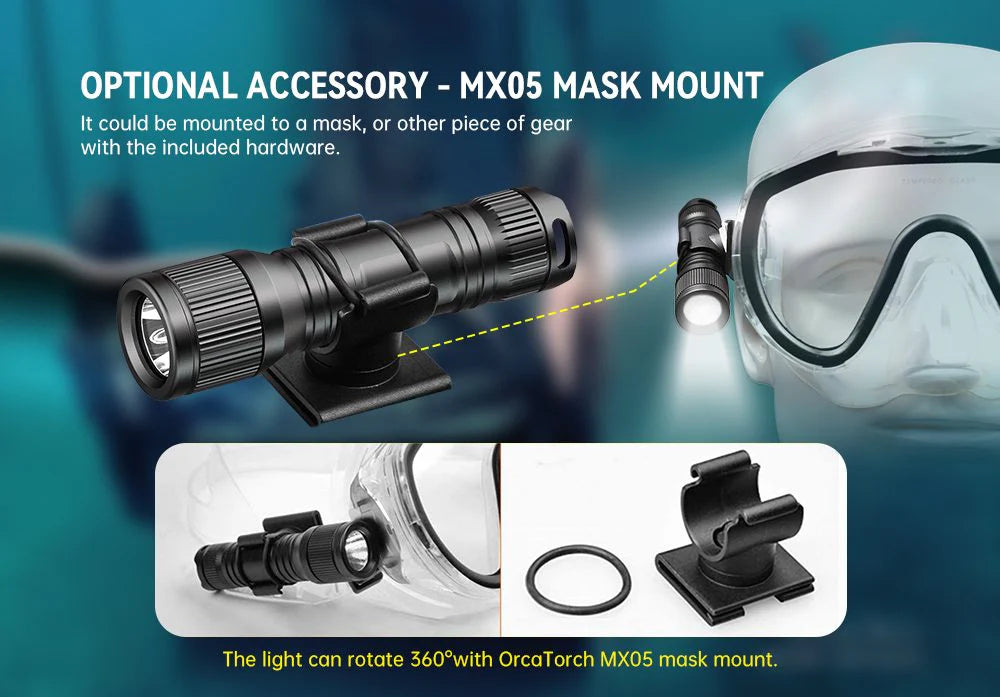

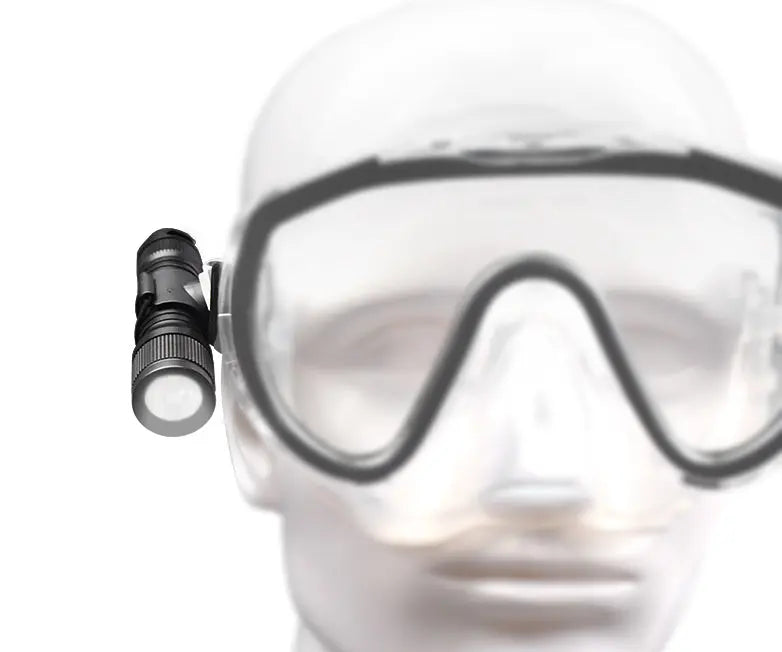

Pair the D560 with the optional OrcaTorch MX05 Mask Mount to create a hands-free lighting solution with full 360° adjustable rotation, ideal for underwater photography, inspections, or night diving.
Features
-

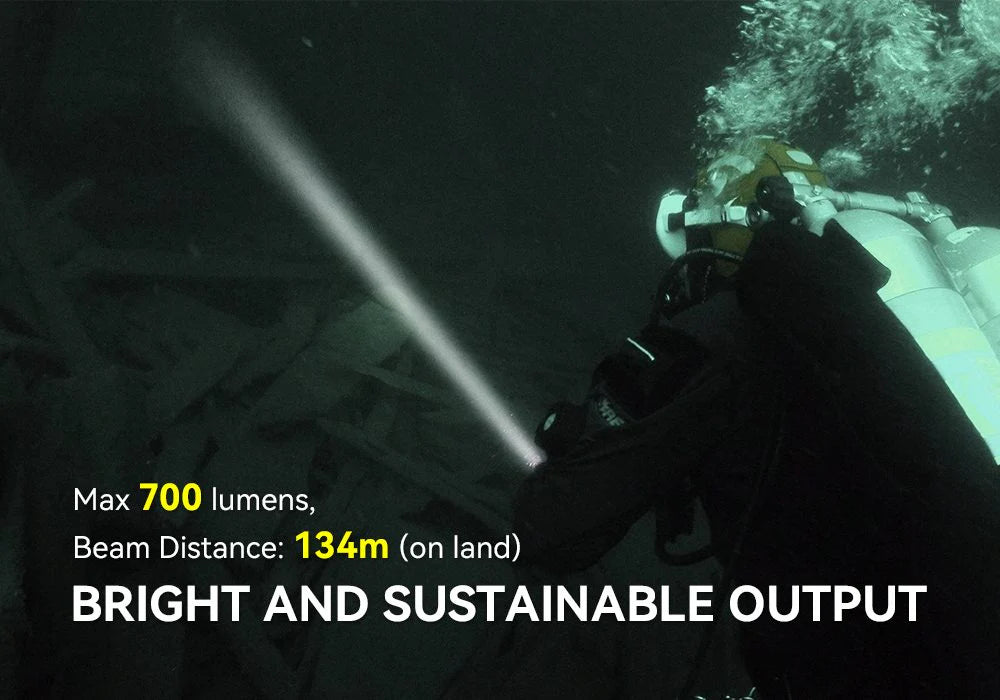

Maximum output of 700 lumens
-
Ultra-compact design – only 90mm long
-
Uses either:
-

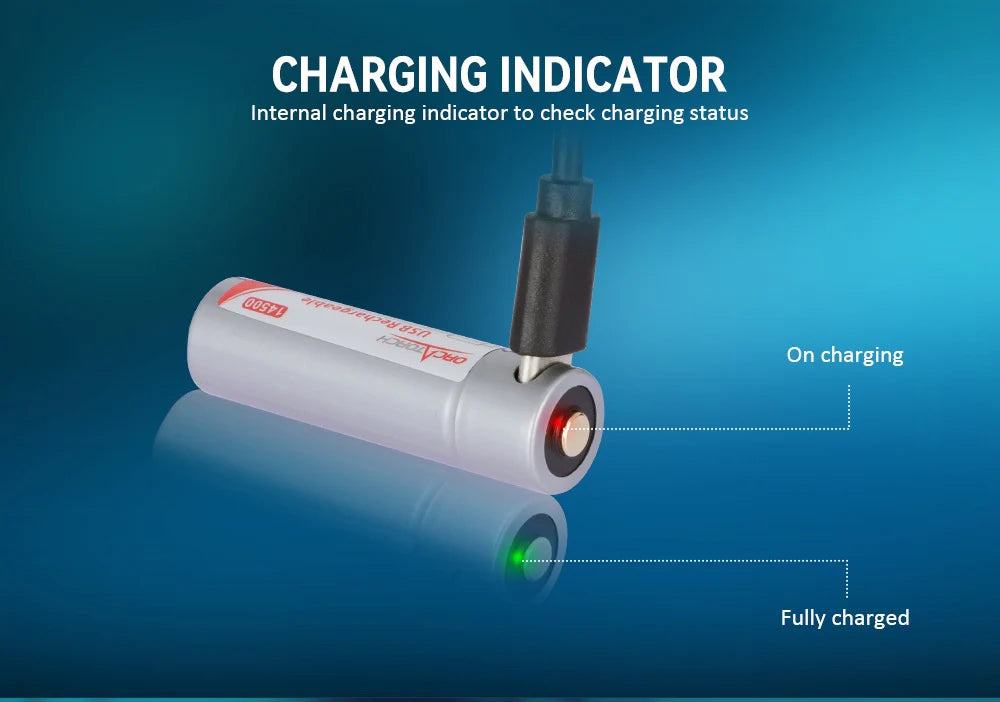

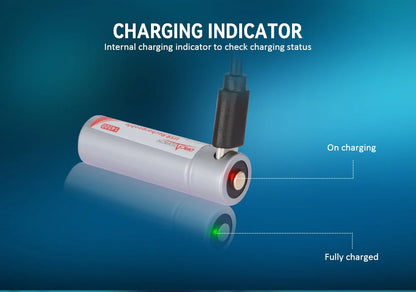

1 × 14500 USB-C rechargeable Li-ion battery (included)
-
1 × AA battery (Ni-MH or Alkaline)
-
-

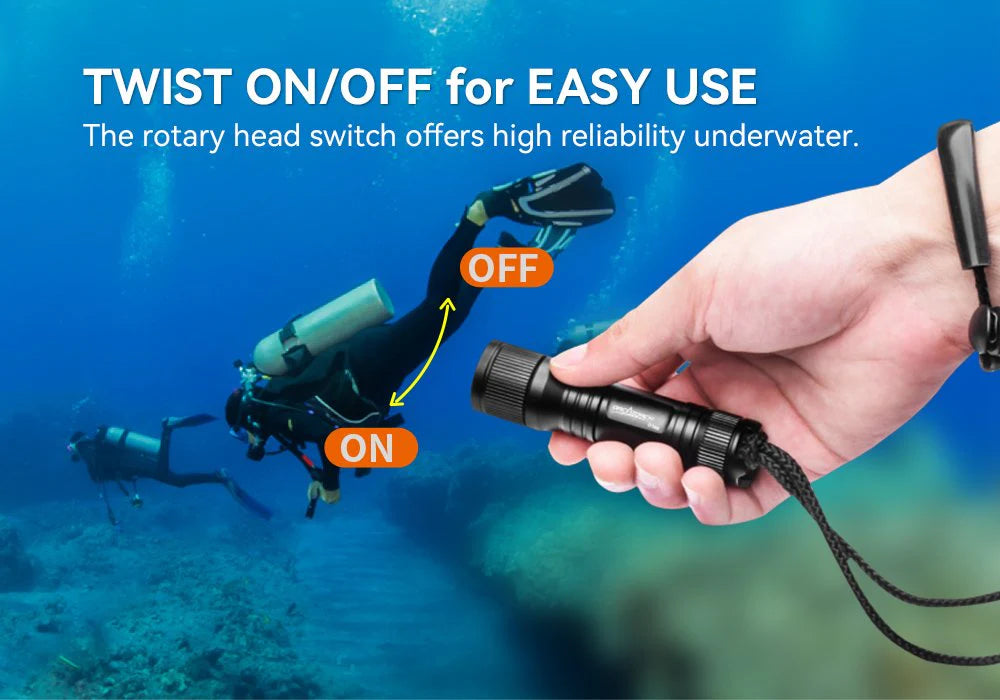

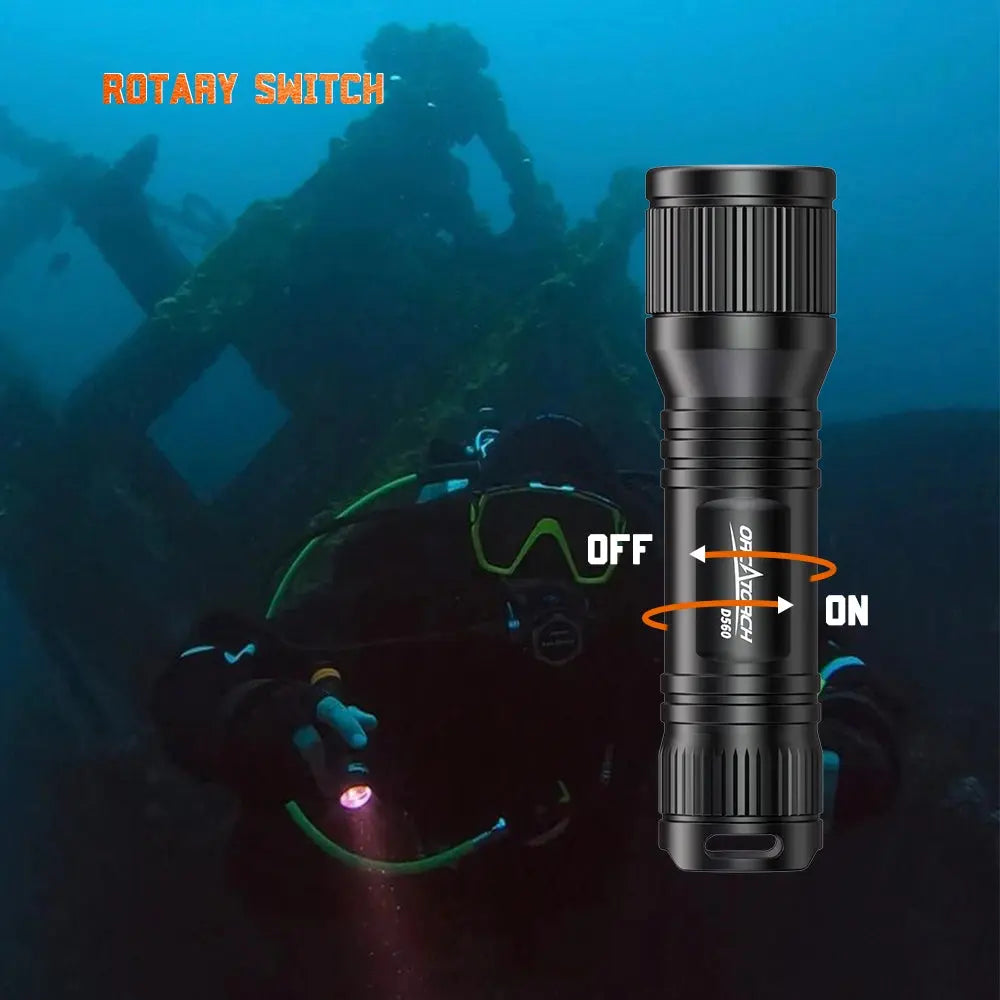

Reliable mechanical rotary head switch
-

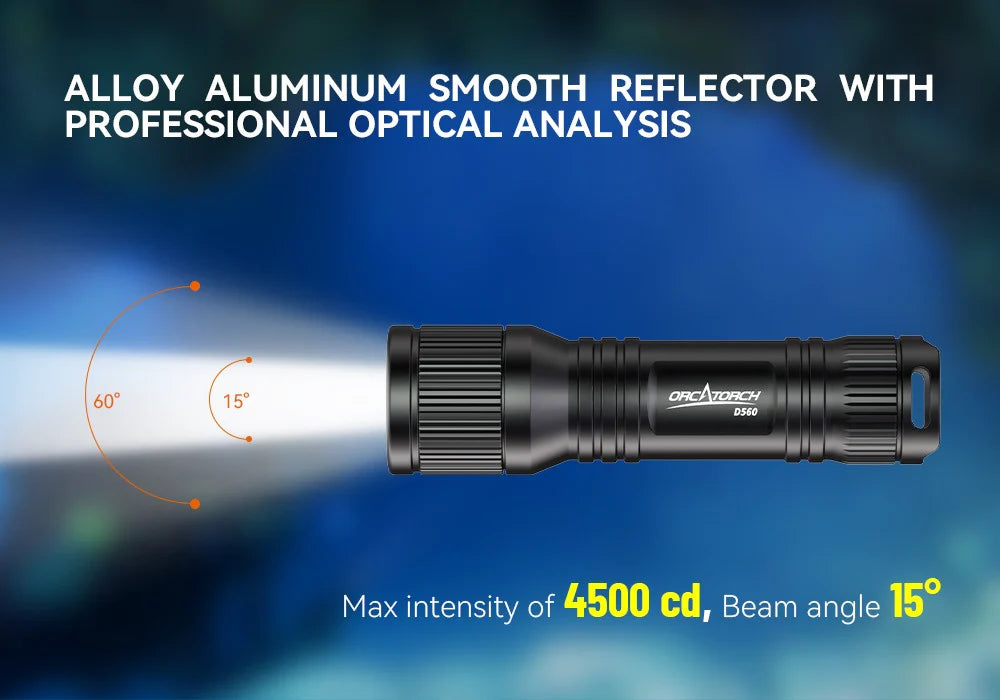

Narrow 15° focused beam for excellent penetration underwater
-
Constant current circuit maintains stable brightness
-
Reverse polarity protection
-
Over-discharge protection
-
Aircraft-grade aluminium construction
-
Premium diamond-grade hard anodised finish for superior seawater corrosion resistance
-

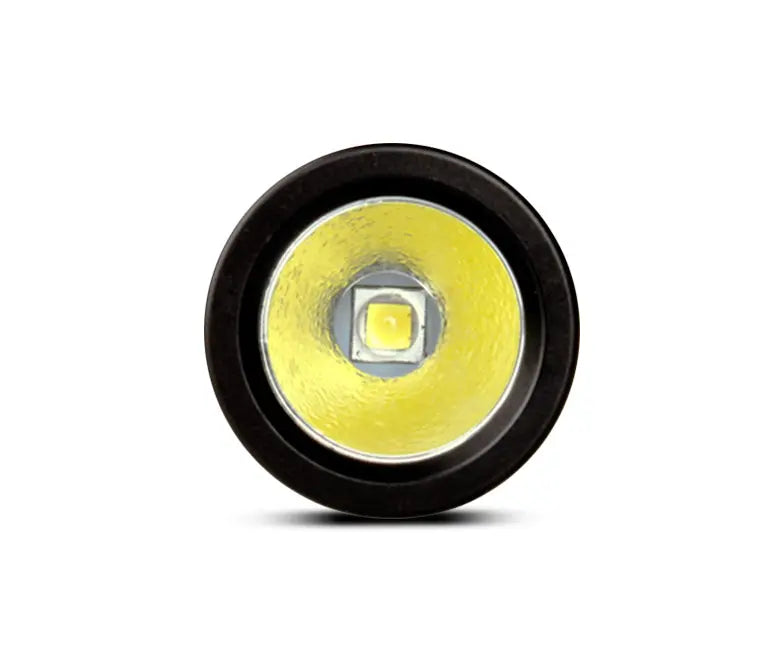

Precision aluminium reflector optimised for underwater use
-

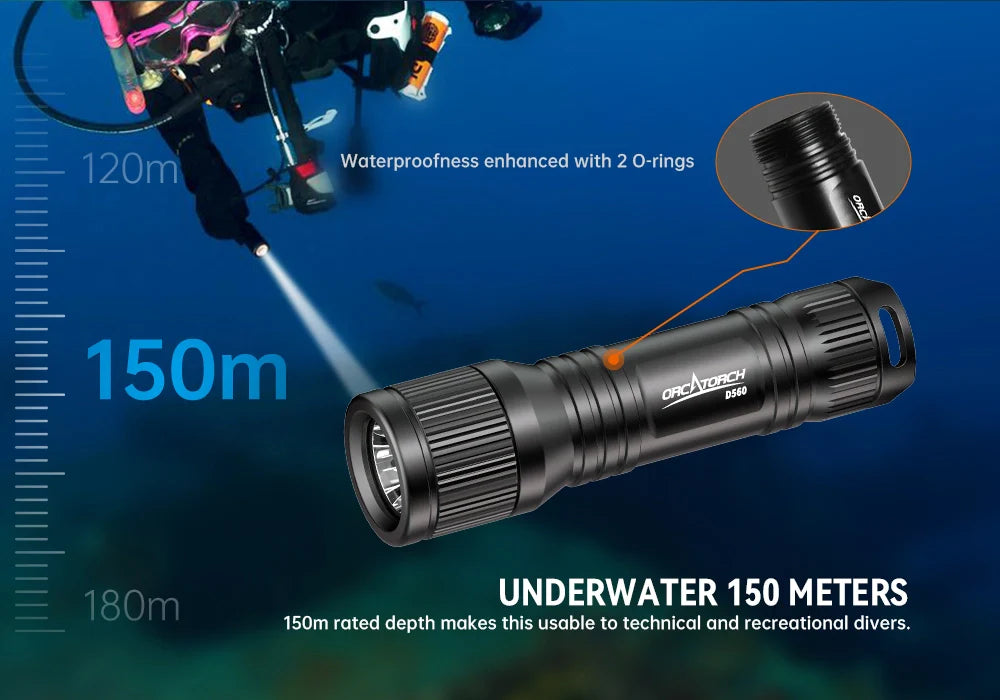

Waterproof to 150 metres
-
Compatible with the optional MX05 360° Mask Mount

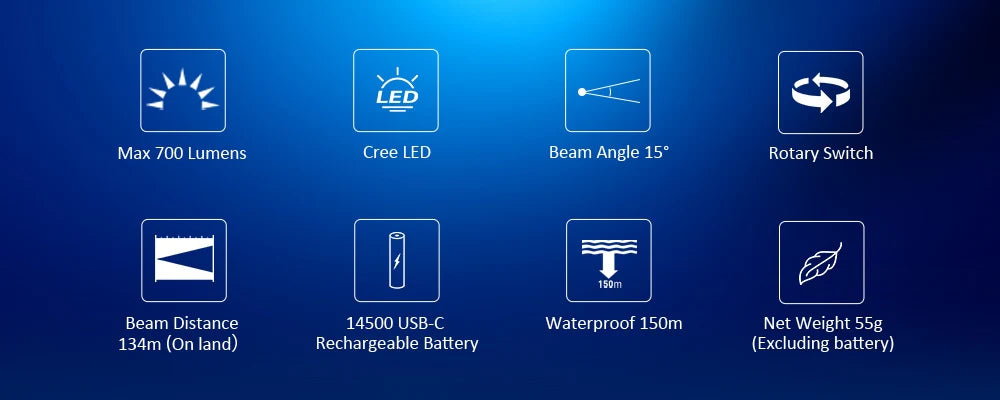

Specifications
| Specification | AA Battery | 14500 USB-C Battery |
|---|---|---|
| Maximum Output | 180 lumens | 700 lumens |
| Runtime | 1 hr 25 mins | 1 hr 10 mins |
| Beam Distance (Land) | 73 m | 134 m |
| Beam Angle | colspan="2" | 15° |
| Waterproof Rating | colspan="2" | 150 m |
| Impact Resistance | colspan="2" | 1.5 m |
| Operating Voltage | colspan="2" | 0.8–4.2V |
| Dimensions | colspan="2" | 90 × 20 × 25.5 mm |
| Weight | colspan="2" | 55 g (without battery) |

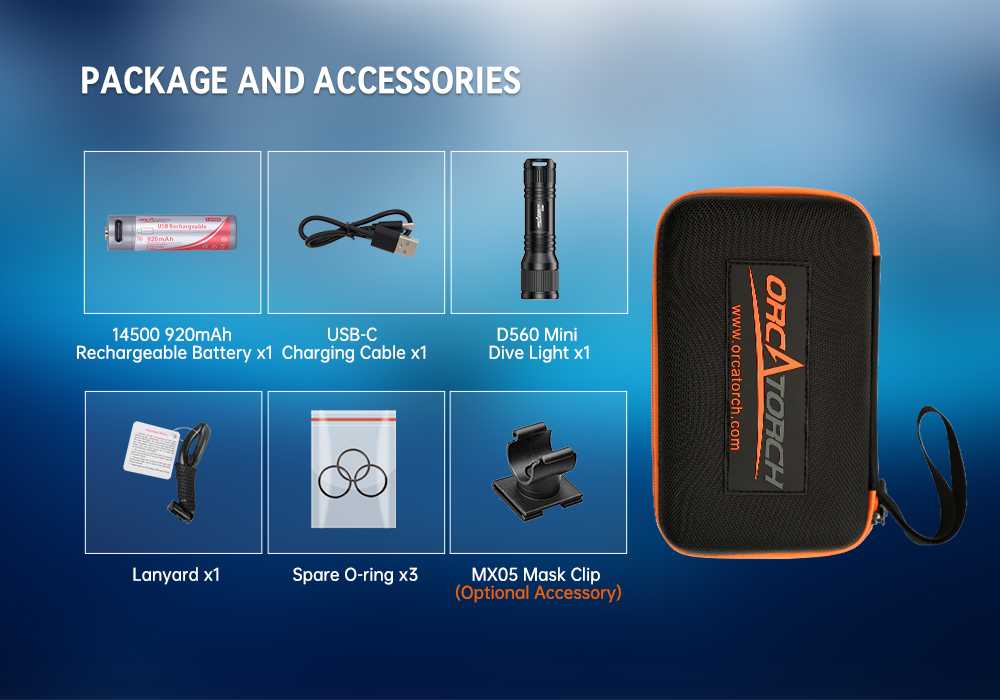

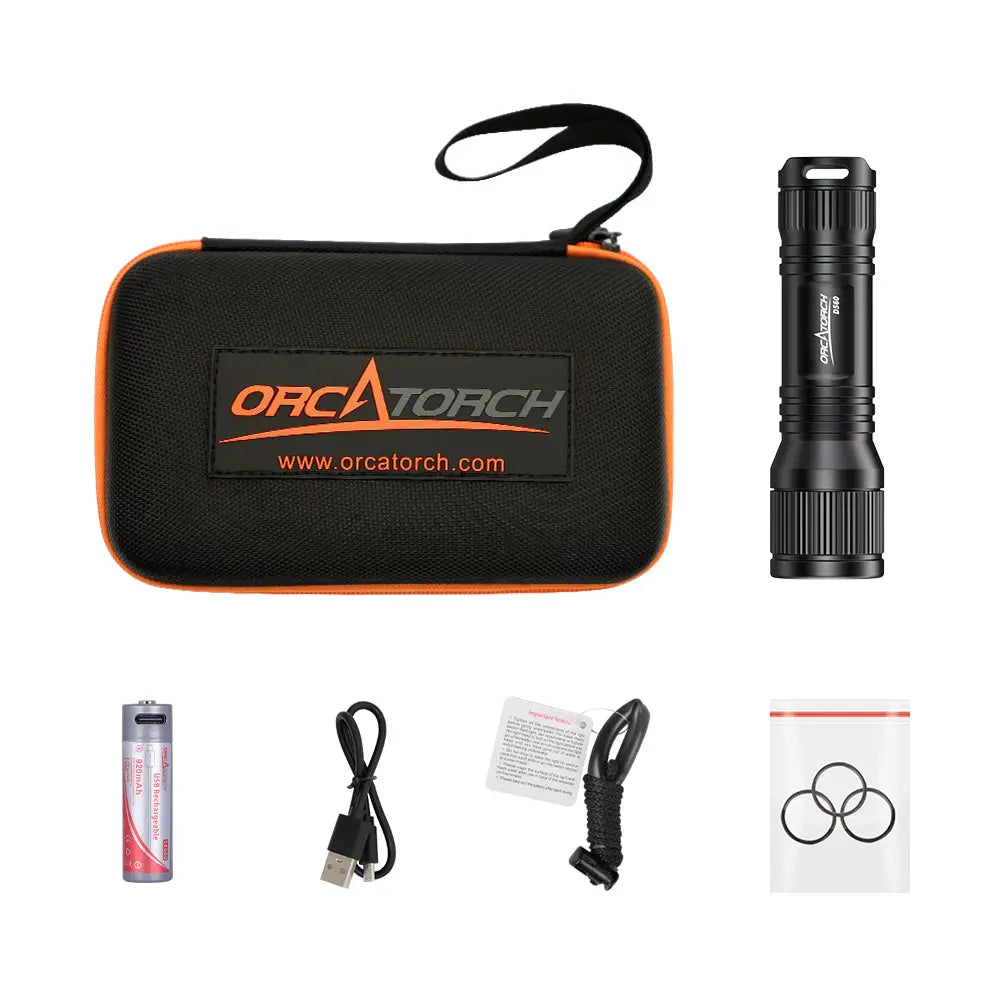

Included
-

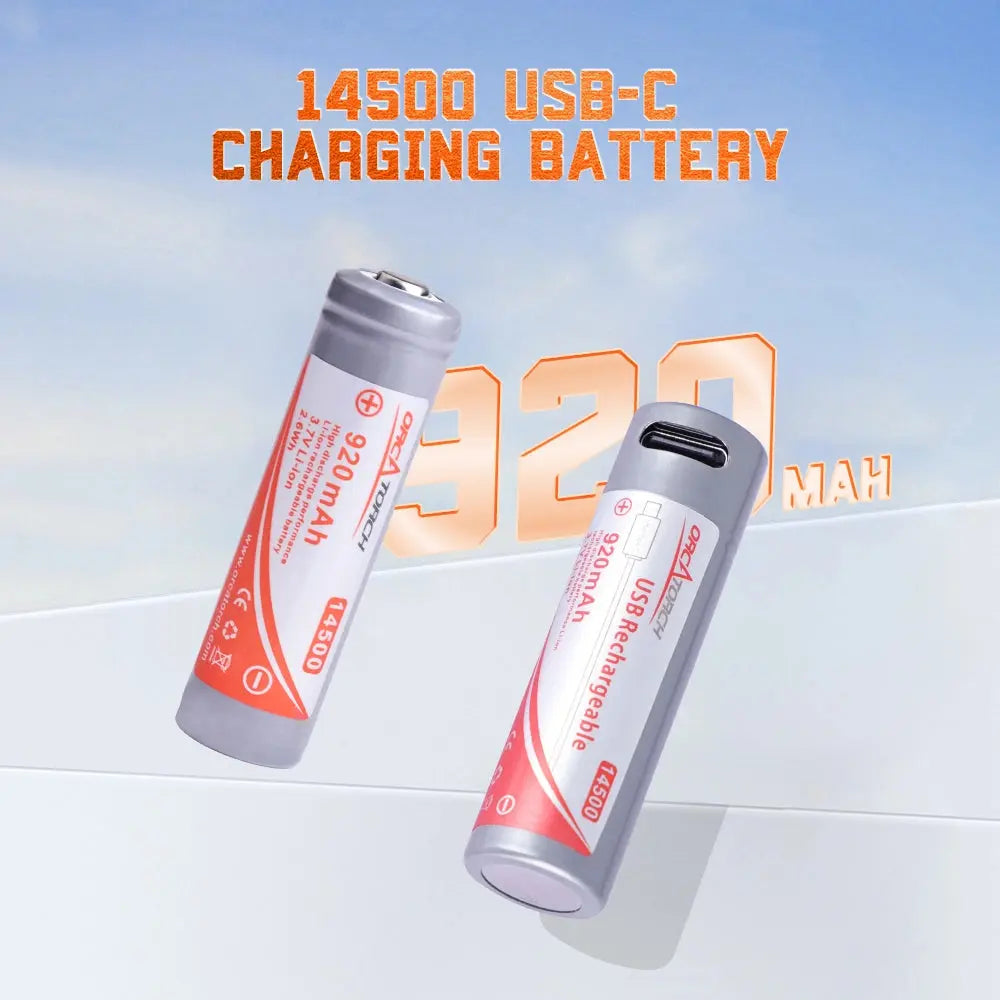

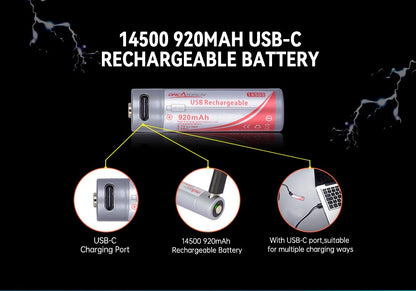

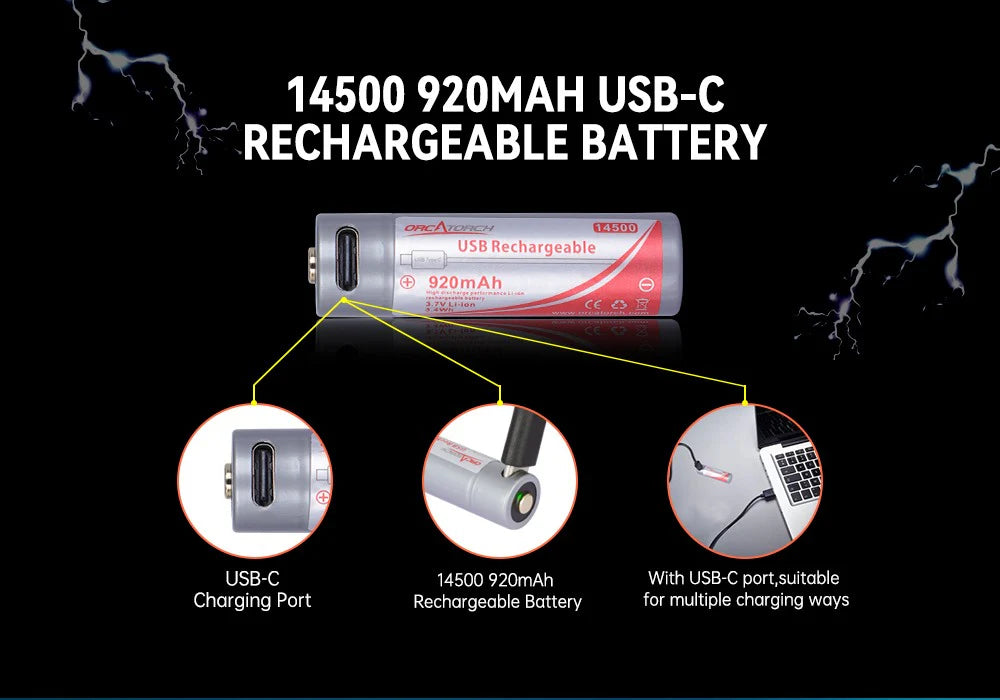

1 × OrcaTorch 14500 USB-C 920mAh Rechargeable Battery
-
1 × USB-C Charging Cable
-
1 × Lanyard
-
3 × Spare O-rings
Optional Accessory
-
OrcaTorch MX05 360° Mask Mount
Ideal For
-
Recreational scuba diving
-
Night diving
-
Backup dive light
-
Freediving
-
Underwater photography
-
Equipment inspections
-
Travel diving
Care Instructions
-
Rinse thoroughly with fresh water after every dive.
-
Dry completely before storage.
-
Lubricate O-rings regularly with silicone grease.
-
Remove the battery if storing for an extended period.
-
Inspect O-rings before each dive.
Why Choose the OrcaTorch D560?
The D560 combines impressive brightness, excellent reliability and incredible portability. With dual battery compatibility, USB-C charging and a compact design that easily fits into any BCD pocket, it's an ideal everyday dive light for recreational and technical divers alike.
