Faber Steel Dive Tank Cylinder 10.5L / 232 Bar Standard
Faber Steel Dive Tank Cylinder 10.5L / 232 Bar Standard
Couldn't load pickup availability

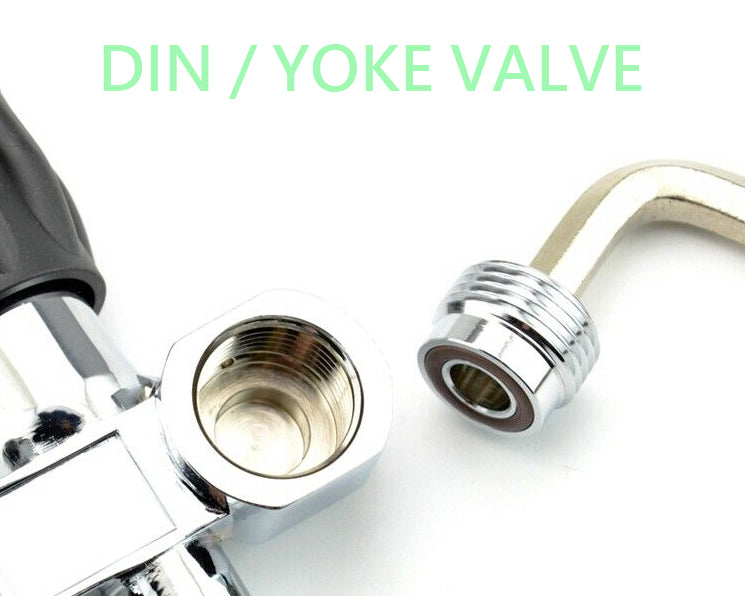

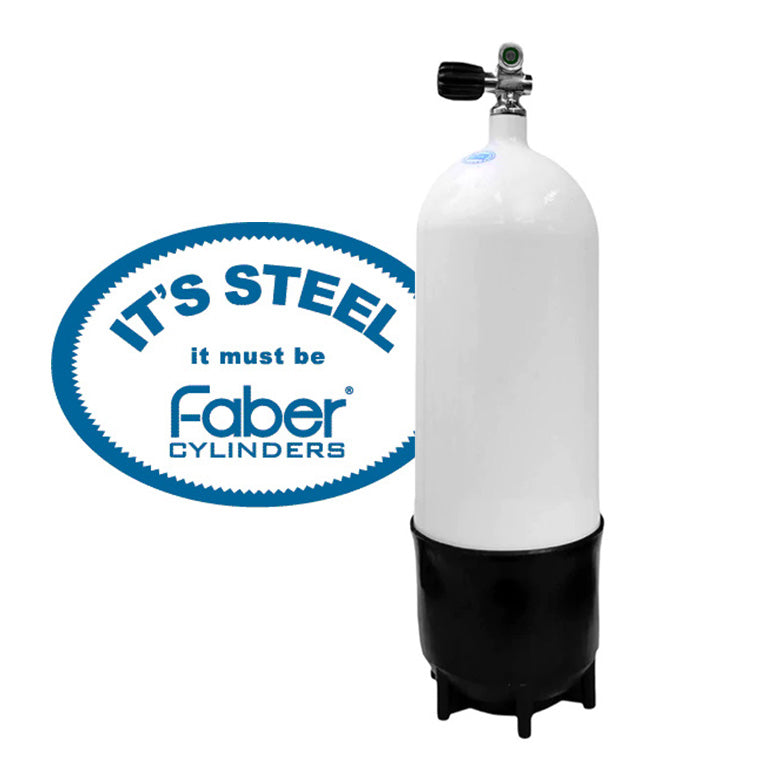

The Faber 232 bar, 10.5 litres (85 cubic foot), Standard, 178 mm (7 inches) diameter, Steel Cylinder with DIN/Yoke valve,cylinder boot and Nitrox ready for up to Oxygen 40% . This is the taller, standard length version of the 10.5 litres Faber cylinders.

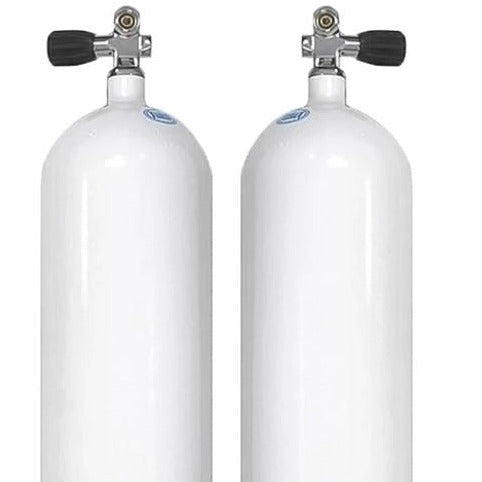

This is by far the most popular Faber steel cylinder. It's great for shore diving, boat diving and almost any other kind of diving you can consider. Technical divers going deep and wanting longer run times often twin up two of these cylinders.
These cylinders are made by Faber, the leading European manufacturer of scuba diving tanks, with extremely high-quality steel made to international standards. Faber cylinders display a unique combination of size, weight and buoyancy.
Our tank come with updated Hydrostatic Stamp .
If you want to pick up from our shop ( Chatswood ,NSW 2067 )
Have a FREE air fill include.
And we provide high quality services such as scuba tank refills,Hydrostatic cylinder testing ,Oxygen Clean ( Include Two Wrap Decal ) and FREE tank valve inspection !!
If you are planning to use the cylinder with Nitrox mixes higher than 40% oxygen, it's essential for the safety of the cylinder user and the person filling the cylinder that the tank is Oxygen cleaned. That means the valve will be oxygen cleaned and prepared with special o-rings, seats, and grease designed for exposure to pure oxygen.
Scuba tanks can be filled up to 40% Nitrox mixes without special Oxygen cleaning as long as the place filling it have pre-mixed nitrox. Otherwise, for partial pressure fills, you will need to have the tank oxygen cleaned for any mixes.
*Installation/disassemble of the tank valve must be operated by dive shop or qualified air fill station to avoid any risk of injury or death.
About Tank Handle

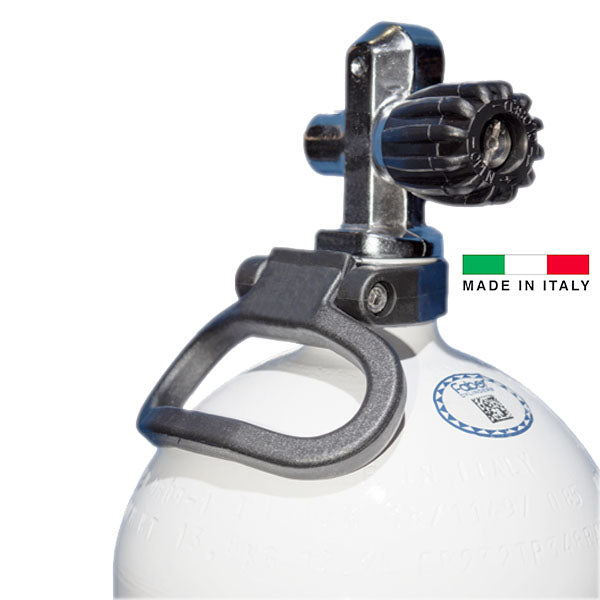

The tank handle suits 39mm - 41mm neck diameter and can only be used on steel tanks. Made from a strong plastic polymer, the tank handle attaches to your tank by screwing in on tank neck.
The scuba diving tank handle is great for attaching to your dive cylinder to make it easier and safer to transport.
About Valve
This 'left' valve is considered the standard or common valve style, as the orientation is similar to commonly used valves on most dive cylinders. It's popular for use on side mount setups on the diver's left side, and for the OXYGEN cylinder on rebreathers.
This 'right' valve is considered the atypical or uncommon valve style, as the orientation is opposite to commonly used valves on most dive cylinders. It's popular for use on sidemount setups on the diver's right side, and opposite side stage bottles to keep the valves facing the same direction while keeping hand-wheels on opposite sides. It's also commonly used for the DILUENT cylinder on rebreathers.

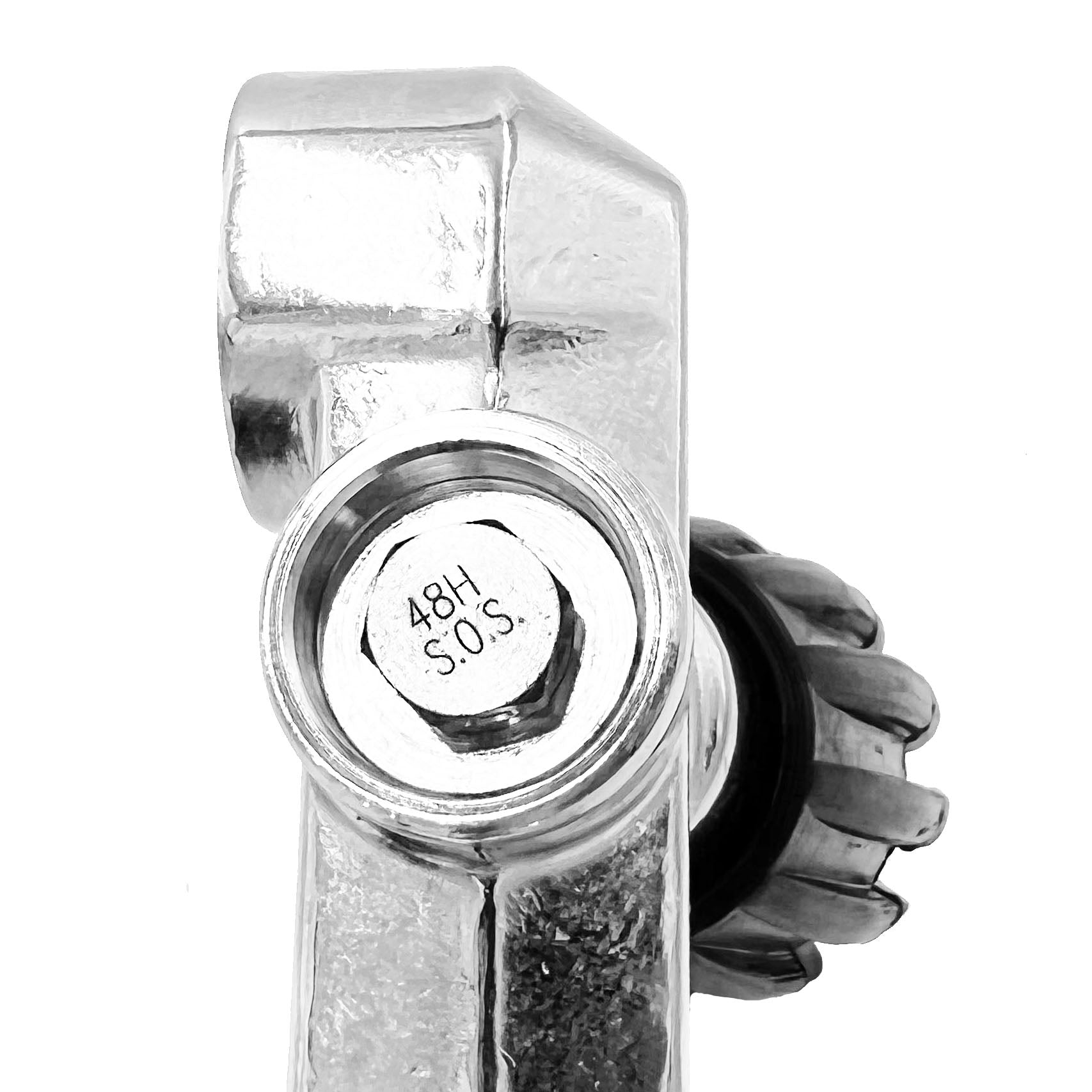

This sidemount valve has a longer extended hand wheel for easy diver turn on and off. The recessed burst disk gives added advantage against disk damage while in wrecks or caves. Comes with O-ring, dip tube and black tank hand-wheel.
Features
Specification
- Fill pressure: 232 bar (3365 psi)
- Test pressure: 348 bar (5047 psi)
- Standard: BS 5045 Pt 1
- Material: 34CRMO4 Chromium-Molybdenum Alloy Steel
- Manufacturing Process: Cold deep drawing from steel plate
- External Primary Finish: Hot Zinc sprayed, layer thickness 60/70 microns
- External Final Finish: 2 part polyurethane white paint sprayed and air-dried
- Internal Finish: Chemically treated with Ferrous Phosphate
- Neck Thread: 3/4 -14 NPSM

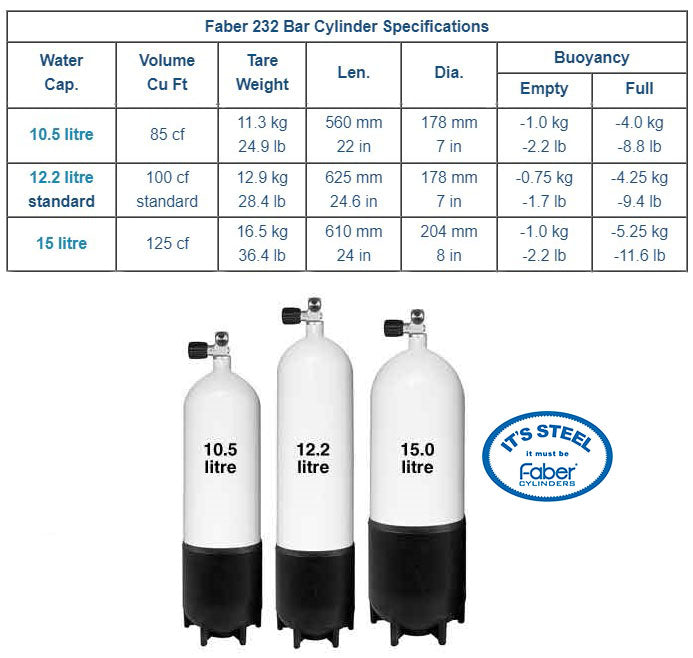

| CYLINDER SPECIFICATIONS | ||||||||
|---|---|---|---|---|---|---|---|---|
| Water Cap. | Volume Cu Ft | Tare Weight | Len. | Dia. | Buoyancy | |||
| Empty | Full | |||||||
| 10.5 litres | 85 cf standard |
11.3 kg 24.9 lb |
560 mm 22 in |
178 mm 7 in |
-1.0 kg -2.2 lb |
-4.0 kg -8.8 lb |
||
